THE KCHIBO KK-DRM 01 WITH 12 KHZ IF OUTPUT

(Some of the text in this documents I have collected from my contributions
to the DRM Software Radio Forum back in 2005).


A portable DRM Medium- and Short wave receiver.
Just connect it to a PC to get going (!)

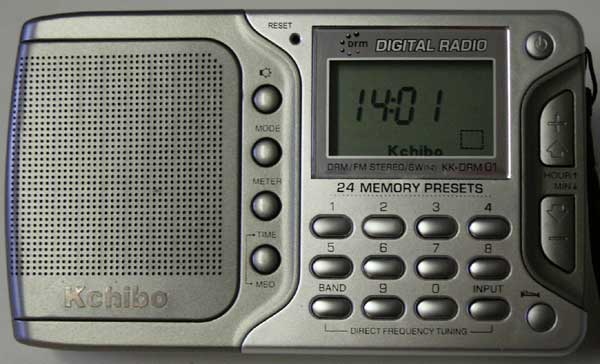

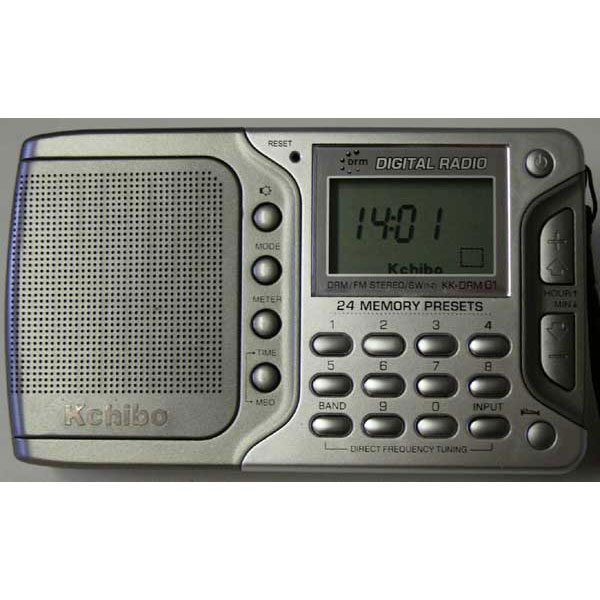

The KCHIBO KK-DRM 01 with 12 kHz IF Output

Fig. 1

I decided that the best thing with this receiver is the clock...

I was offered the KK-DRM01 for USD 50.- FOB Hong Kong back in 2005. It is a "DRM FM Stereo Two Band SW radio" according to their HK office. They did not mention whether there was a PC included in the FOB price. Finally I got this receiver free of charge after some correspondence with Hong Kong, suggesting that I wanted to do some measurements on it.
The little wonder KK-DRM01 arrived by courier delivery, but without any software-CDs. The radio was shipped in nice gift box and packed in a cute pouch with tassles. It came with some printed instructions in English and German, a charger, stereo earphones, a connecting cable with 3,5 mm stereo plugs and an antenna wire with a hook and an alligator clip attached.

The frequency bands are:

0.520 - 1.620 MHz in 10 kHz steps, or 0.522 - 1.620 MHz in 9 kHz steps,
2.300 - 7.300 MHz in 5 kHz steps and
9.500 - 26.100 MHz in 5 kHz steps.
87.5 - 108.0 in 100 kHz steps.

There is a gap between 7.3 and 9.5 MHz which means that BBC (in 2005) on 7.320, 7.465 and 9.470 MHz were not possible to receive.



Some words of caution

The 12 kHz output on the Kchibo KK-DRM 01 is a 3.5 mm diameter Stereo (!) plug. The "R" and "L" channels are wired in parallel. That means if you plug in a Mono plug, you will shortcircuit the 12 kHz to ground and nothing works.
When you connect a PC via a shielded audio cable the KK-DRM 01 still picks up noise from the PC, even if the cable is 10 meters long, so that the receiver was placed well away from the computer. The 12 kHz DRM output signal seems to be very low at weak RF input signals so that the level might be too low for the Line Input. Use the Microphone Input instead.
Back to top




First impressions

The radio works. But my main interest was to find out how well it worked on DRM. One drawback of the receiver is the fairly low S/N ratio. Even though the shifted PSD looks perfect when you look in Dream, the audio won't play, or it plays with dropouts. The performance on Medium Wave is better than on Short Wave. That means on DRM, the recorded SNR values were low. It did work fairly well on DRM under certain conditions:
  • The DRM signal should be strong, or at least rather strong.
  • The DRM station should operate on 9 MHz or lower.

BBC on 1296 kHz was decoded quite OK, but the receiver is not overly sensitive on the ferrite antenna. On Short Wave RMC (Monaco) on 6175 kHz was fairly good, Radio Luxembourg on 7295 kHz too, but the reception result was still not very impressing. The radio liked Deutsche Welle. On 6 MHz, I should add. Deutsche Welle from Sines on 15440 kHz was received with a strong and stable signal, but the MSC CRC in Dream wouldn't light up, which meant that there was no decoded audio.

Back to top

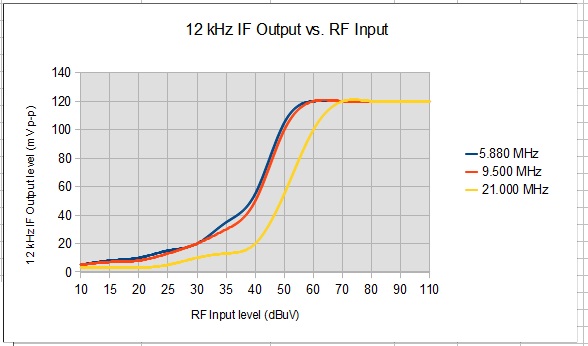

12 kHz Output Level vs. RF Input Level

Note: All RF measurements were made with the signal generator connected to the (collapsed) telescopic antenna and the coaxial cable shield connected to the ground of the 12 kHz IF output socket.

When I fed an RF signal from the signal generator to the KK-DRM01, I measured 11.800 kHz on the 12 kHz output. The 12 kHz output impedance is low, less than 600 Ohms.

The AGC (Automatic Gain Control) in the receiver is not very efficient. The output level varies a lot depending of the input signal. Eventually the AGC sets in, but at rather high input levels. Weak DRM signals produce very little 12 kHz IF to the sound card of the PC.

Fig. 2

Back to top




How good (or bad) ist this receiver?

The set comes with a built-in Telescopic antenna. In the box there also was a piece of wire with a clip and a hook that you could put on the telescopic antenna and hang up somewhere as suggested in the scarce User's Manual:

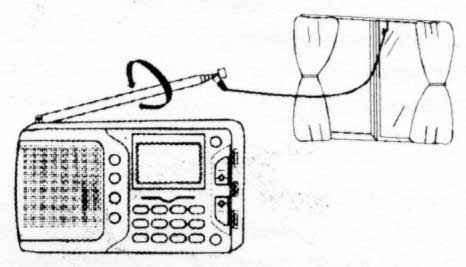

The KCHIBO KK-DRM 01 with an external antenna

Fig. 3
The Kchibo connected to a Curtain (rail ...) Antenna

Back to top




The sensitivity of the Short Wave Receiver

Receiver Frequency Sensitivity (dBm) for 20 dB SINAD
2.300 MHz -94.4
3.200 MHz -101.0
3.900 MHz -103.7
4.750 MHz -102.8
5.950 MHz -105.5
7.100 MHz -106.9
9.500 MHz -104.9
11.650 MHz -104.5
13.600 MHz -103.0
15.100 MHz -101.9
17.550 MHz -100.4
21.450 MHz -98.7
25.600 MHz -95.4
26.095 MHz -95.5

Back to top




Image Frequency attenuation

The image frequency response is low. Very low. It is 3 dB at 15 MHz. The image attenuation is virtually nothing at frequencies above 15 MHz. Imagine all the noise 900 kHz up which is added to the DRM channel. That probably explains why DRM reception is almost impossible on higher Short Wave frequencies.
Receiver Frequency Image Frequency Attenuation (dB)
2.300 MHz 16.4
3.200 MHz 21.2
3.900 MHz 21
4.750 MHz 9.5
5.950 MHz 11.9
7.100 MHz 8.4
9.500 MHz 9.1
11.650 MHz 6.0
13.600 MHz 4.1
15.100 MHz 3.3
17.550 MHz 1.8
21.450 MHz 1.3
25.600 MHz 1.1
26.095 MHz 1.2

Back to top




The 450 kHz IF Filter Characteristics

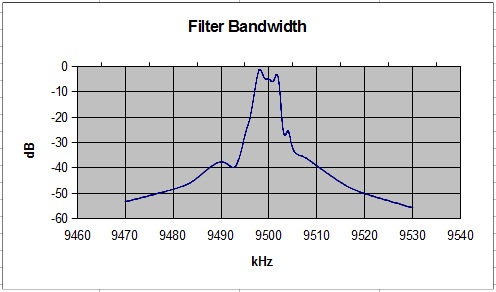

450 kHz IF Filter Characteristics

Fig. 3
The IF Ceramic Filter Attenuation vs. frequency

Back to top




The adjacent channel selectivity

Is it a single or double conversion receiver? There is nothing mentioned in the specification. There was no Service Manual enclosed in the parcel. The "Single Signal Selectivity" is mentioned in the manual as "= 16 dB" which must be a misprint!

The receiver is a single conversion superheterodyne and the IF frequency is 450 kHz. The Local Oscillator is f(RX) + IF. The adjacent channel selectivity (10 kHz) is 26-27 dB over the entire Short Wave range, measured with two signal generators which can be rated as sufficient for this kind of receiver.
I read somewhere that the engineers from Kchibo travelled many times to the Communications University of China (yes, that's what I read), why did they not make one more trip to discuss double conversion!?

Adjacent Channel Selectivity
Receiver
Frequency
Selectivity +10 kHz
(dB)
Selectivity -10 kHz
(dB)
2.300 MHz 25.7 26.7
3.200 MHz 27.3 24.7
3.900 MHz 27.4 25.0
4.750 MHz 27.7 25.3
5.950 MHz 27.4 25.5
7.100 MHz 27.4 25.8
9.500 MHz 27.4 26.1
11.650 MHz 27.3 26.1
13.600 MHz 27.4 26.2
15.100 MHz 27.4 26.4
17.550 MHz 27.3 26.5
21.450 MHz 27.3 26.6
25.600 MHz 27.4 26.7
26.095 MHz 27.4 26.7

Back to top




Final comments regarding DRM reception with the Kchibo KK-DRM 01

I let it play all night on batteries while logging 3995 kHz just to see how long the batteries would last. I measured the current consumption to 38 mA in "DRM mode" with the same batteries I had used the night before. ("DRM Mode" is turning the volume control to zero - hi-hi! ).

The Kchibo defintively does not like antennas. At the beginning of a logging session I had a 4 meter long PVC insulated wire directly connected to the telescopic antenna. Then I wound the insulated wire 4 turns around the telescopic for a while and then continued later with 3 turns.

When the wire was directly connected to the telescopic I noticed some carriers inside the DRM signal in the waterfall spectrum. I could also see very narrow band text transmision (it looked like PSK31), probably ham radio related just below the DRM spectrum. These spurii disappeared when the wire was inductively coupled to the Kchibo.

I inquired a couple of times to Hong Kong regarding the limited frequency range. There was no reply to my questions.

I wrote to Hong Kong again on the 15th of November 2005 and sent a reminder on the 6th of June 2006, but so far there has been no feedback and probably that's final. At the time of writing this receiver probably is history.

After having to put up with the KK-DRM 01 for more than 3 weeks during my "working holidays" in Sweden (the only receiver I had with me), I have decided that the BEST thing with this radio is the DIGITAL CLOCK.... This receiver is not at all suited for DRM reception. And, it is not worth wasting any more time to find out why. It is possible to receive your local FM stations, that's all. But the radio is still working. I still use it as a clock in the office.

Back to top


The Kchibo KK-DRM 01 died and has been recycled

The Kchibo radio died. I don't know when it did, but it is dead. After putting in new batteries nothing happened. No display. No reaction at all. I don't miss it very much. After all I got it free of charge. And the clock was not very accurate either.

R.I.P.









(19th Nov. 2011, reviewed 9th Feb. 2016, updated 11th July 2017)
